Build a Garden Archway: A Complete Guide to Creating a Stunning Entrance for Your Outdoor Space

Introduction: Why Every Garden Deserves an Archway

A garden archway is one of the most transformative structures you can add to your outdoor space. Whether it frames the entrance to a vegetable garden, marks a transition between lawn areas, or simply provides a romantic focal point, an arch draws the eye and invites exploration. Few garden features combine practical structure with aesthetic beauty quite so effectively, and the satisfaction of building one yourself makes it even more rewarding. From the moment the first climbing rose winds its tendrils around your new creation, you will understand why gardeners have been building archways for centuries.

Beyond their visual appeal, garden archways serve a genuinely functional purpose. They provide a sturdy support structure for climbing plants such as roses, clematis, wisteria, honeysuckle, and jasmine, all of which would otherwise need dedicated trellising or fencing. By training vigorous climbers over an arch, you create a living, breathing feature that changes with the seasons — bare and architectural in winter, lush and green through summer, and spectacular during the flowering months. The vertical growing space an arch provides is also invaluable in smaller gardens where ground space is limited but height can be exploited beautifully.

This guide will walk you through everything you need to know to build a garden archway from scratch, using timber as the primary material. Timber is the most accessible, affordable, and beginner-friendly choice for a DIY arch project, and with the right wood treatment it will last for decades. Whether you have advanced carpentry skills or you are picking up a saw for the first time, the step-by-step instructions ahead will give you the confidence and knowledge to complete this project in a single weekend and enjoy the results for many years to come.

Planning Your Garden Archway: Design, Materials, and Measurements

Good planning is the foundation of any successful building project, and a garden archway is no exception. Before you purchase a single piece of timber, spend time thinking carefully about the location, dimensions, and style of your arch. The placement should feel natural within your garden’s overall layout — ideally connecting two areas or framing a path that already exists. Walk your garden at different times of day and consider where an arch would create the most compelling view, both from a distance and as you pass beneath it. Think about how it will look from inside the house as well as from key vantage points in the garden itself.

Standard garden archway dimensions provide a useful starting point for your planning. A typical arch should be at least 2 metres (roughly 6.5 feet) tall at its highest interior point to allow comfortable passage, and between 90 centimetres and 1.2 metres (3 to 4 feet) wide internally. If you intend to push a wheelbarrow or garden cart through the arch, err on the wider side. The depth of the arch — meaning how long it is from front to back — affects both its visual weight and its structural stability. A depth of 40 to 60 centimetres gives a solid, three-dimensional presence without overwhelming a modest garden space.

For materials, pressure-treated softwood timber is the most practical and economical choice for a first-time builder. Look for timber rated UC4 or above for ground contact, since the posts will be driven directly into the soil. Common sizes to purchase include 75mm x 75mm posts for the uprights, 75mm x 38mm timber for the horizontal rails and the curved top sections, and 25mm x 38mm slats for the decorative lattice sides if you plan to include them. You will also need galvanized screws or bolts to resist rust, outdoor wood preservative or paint, and either metal post anchors or concrete for securing the uprights in the ground.

• Timber posts: 75mm x 75mm pressure-treated softwood, cut to your required upright height plus an additional 60cm for ground burial.
• Top rails and arched sections: 75mm x 38mm timber, with enough length to create the curved or apex top of your design.
• Lattice slats (optional): 25mm x 38mm timber cut to fit between the uprights for decorative side panels that also support climbing plants.
• Fixings: Galvanized 75mm and 50mm screws, coach bolts for major joints, and post anchors or fast-setting concrete for ground fixing.
• Finishing materials: Exterior wood preservative, primer, and paint or stain in your chosen colour.

Tools You Will Need and Safety Considerations

Having the right tools assembled before you begin makes the entire building process smoother and safer. For this project you will need a measuring tape and a carpenter’s square for accurate marking, a pencil or marking knife for scribing cut lines, a handsaw or circular saw for cutting timber to length, and a jigsaw for cutting the curved sections of the arch top. A cordless drill with a selection of wood drill bits and a screwdriver bit will handle most of the fixing work, while a mallet and a spirit level are essential for getting the posts plumb and true in the ground. If you are concreting the posts in, you will also need a spade or post-hole borer.

Safety should be your foremost concern whenever you work with power tools and timber. Always wear safety glasses when sawing or drilling to protect your eyes from flying debris, and use hearing protection when operating a circular saw for extended periods. Work gloves protect your hands from splinters and from the chemicals in pressure-treated wood, which should not come into prolonged contact with bare skin. Wear sturdy footwear with reinforced toe caps when handling heavy posts, as dropping a length of timber on unprotected feet causes serious injury. If you are working at height to fix the top rails, use a stable stepladder and have a helper present to support materials and provide stability.

It is also worth taking a moment before you begin to check for underground services in your chosen installation location. Gas pipes, water mains, and electrical cables are sometimes buried surprisingly close to the surface in gardens, and driving a post into one of these could have catastrophic consequences. Most utility companies offer a free cable and pipe locating service, and you can also purchase or hire a cable avoidance tool (CAT) for a thorough check. Once you are confident the ground is clear, mark out your post positions carefully using stakes and string to visualise the footprint of the arch before breaking ground.

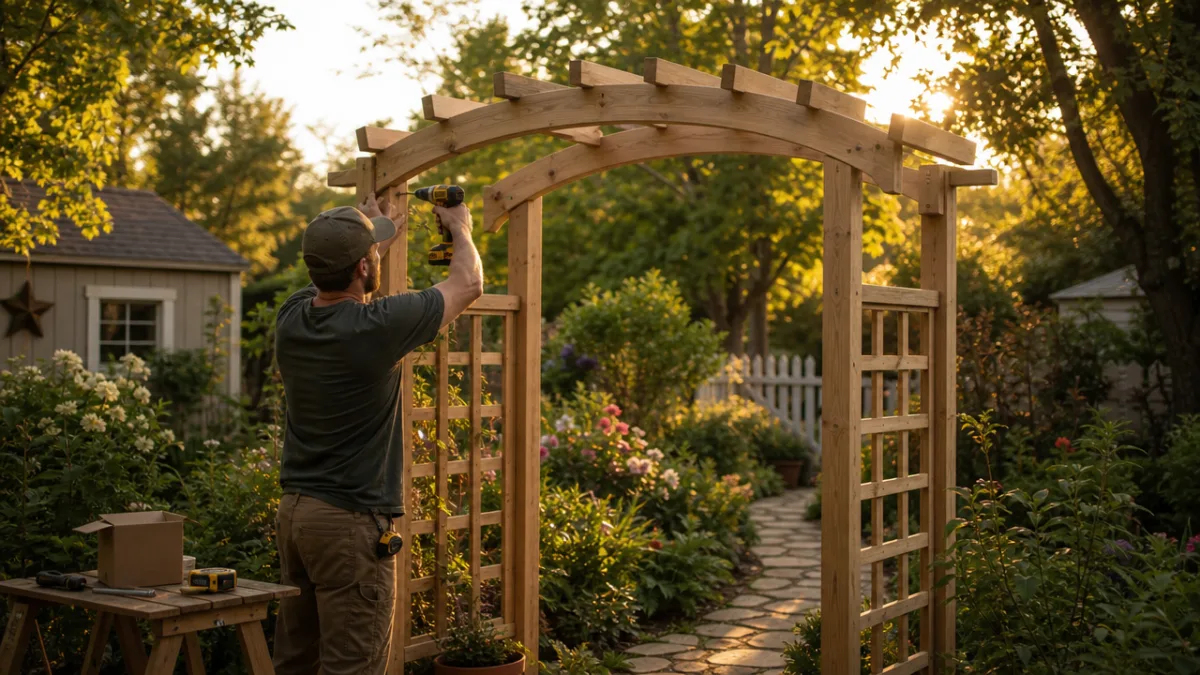

Step-by-Step Construction: Building Your Garden Archway

Begin by cutting your four main upright posts to length. Remember that each post needs to be the interior height of your arch plus at least 60 centimetres for burial — more in loose or sandy soil. So for a 2-metre interior height, your posts should be at least 2.6 metres long. Sand any rough cut ends and apply a generous coat of end-grain preservative, paying particular attention to the sections that will go into the ground, as this is where rot typically starts. Allow the preservative to soak in for the time recommended on the tin before proceeding.

Dig or bore your four post holes to the correct depth and spacing, then lower the posts in one at a time. Use a spirit level on two adjacent faces of each post to confirm it is perfectly vertical before backfilling or pouring concrete. If using concrete, allow it to cure for at least 24 hours before loading the posts with any weight. If using compacted soil and rubble, tamp the backfill firmly in layers of around 15 centimetres at a time, checking the level of the post after each layer. Brace each post temporarily with timber off-cuts screwed diagonally to pegs driven into the ground while the fixing sets or while you move on to the next post.

Once all four posts are secure and set, you can begin fixing the horizontal rails. The bottom side rails run between the front and back posts on each side of the arch, typically at a height of around 30 centimetres from the ground to provide a base for lattice panels and to add rigidity to the overall structure. The top side rails run just below the arch top. Cut these rails to the exact distance between the inner faces of your posts, drill pilot holes to prevent splitting, and fix them with galvanized screws or coach bolts. Check for square at each corner using your carpenter’s square as you go.

1. Cut and treat all upright posts, then dig post holes to the correct depth and spacing.
2. Set posts vertically using a spirit level, brace them, and secure with concrete or well-compacted fill.
3. Fix horizontal bottom and top side rails between posts on each long side of the arch.
4. Cut and shape the curved or apex top sections using a jigsaw, then fix across the top of the uprights.
5. Add decorative lattice slats to the side panels if desired, spacing them evenly and fixing with short screws.
6. Sand all surfaces smooth, apply preservative, then prime and paint or stain to your chosen finish.

The arch top is the element that gives your structure its character, and it deserves careful attention. For a classic curved arch, cut four pieces of 75mm x 38mm timber slightly longer than the width of the opening. Stack these in pairs and use a thin flexible batten bent to your desired curve as a template to mark the curved edge, then cut along this line with a jigsaw. Two pairs of these curved pieces are then sandwiched together with a spacer between them and fixed to the tops of the uprights, creating a laminated curve that is far stronger than a single piece. For a simpler design, an apex or pointed top can be achieved with angled cuts on straight timber — no jigsaw required.

Finishing, Treating, and Painting Your Timber Archway

The longevity of your garden archway depends very largely on how well you finish and protect the timber before and after assembly. Even pressure-treated wood benefits enormously from additional coats of exterior wood preservative, particularly on sawn ends and drilled holes where the protective treatment may not have fully penetrated during the factory process. Use a brush to work the preservative generously into all surfaces, paying close attention to joints, end grain, and any areas where water might sit and pool. Allow the first coat to dry completely, then apply a second coat for maximum protection before moving on to your decorative finish.

For the decorative finish, you have several appealing options to consider depending on the look you want to achieve. A classic forest green or dark grey exterior paint gives a crisp, formal appearance that suits structured garden designs and looks especially striking when framed with white or pale pink climbing roses. Natural teak oil or a transparent wood stain preserves the warm colour of the timber grain and suits more relaxed, naturalistic planting schemes. Creosote-substitute products offer excellent weather resistance and give a rich brown tone, though they have a distinct smell for the first few weeks. Whatever product you choose, ensure it is rated for exterior timber and reapply it every two to three years to maintain protection.

Allow your completed arch to weather slightly before planting climbers against it, typically two to four weeks, to give all paints and treatments time to fully cure and off-gas. When you are ready to plant, choose climbers that suit your soil type and light conditions as much as your aesthetic preferences. Position plants at the base of each upright and guide the young stems towards the structure using soft ties — never wire, which can damage tender stems. In the first season, train the main framework stems as horizontally as possible along the lower rails before encouraging them upward, as this encourages far more side shoots and therefore more flowers than allowing the plant to rush straight to the top.

Choosing Climbing Plants and Long-Term Care of Your Garden Archway

Selecting the right climbing plants is one of the most pleasurable parts of the entire archway project, and the range of options available to the gardener is genuinely dazzling. Climbing roses are perennially popular for good reason — varieties such as ‘Zéphirine Drouhin’, ‘New Dawn’, and ‘Compassion’ offer exceptional fragrance, generous flowering over a long season, and vigorous enough growth to cover an arch within two to three seasons. Clematis is another outstanding choice, with hundreds of varieties spanning an enormous range of flower colours, sizes, and flowering periods, allowing you to layer different varieties for near-continuous colour from late winter through to early autumn.

For fragrance, few plants rival wisteria or honeysuckle trained over a garden arch. Wisteria produces its legendary cascades of lilac or white blooms in late spring and will eventually form a woody, architectural framework that looks beautiful even in winter. Bear in mind that wisteria is a vigorous grower that requires annual pruning — twice yearly for best flowering results — and may take three to five years to establish well before blooming freely. Honeysuckle is faster to establish, less demanding to maintain, and fills the air around the arch with a sweet scent that is particularly intense on warm evenings, making it a wonderful choice for an arch positioned near an outdoor seating area.

Long-term care of the archway itself is straightforward if you stay on top of a few simple maintenance tasks each year. Inspect all joints and fixings annually, ideally in early spring before the growing season begins in earnest, tightening any screws that have worked loose and replacing any that have corroded despite being galvanized. Check the condition of the wood where the posts meet the ground, probing with a screwdriver for soft spots that indicate the early stages of rot — caught early, these areas can often be treated with a hardening resin wood repair product rather than requiring complete post replacement. Sand back any areas where the paint or stain has begun to peel and recoat them promptly to prevent moisture from getting into the timber beneath.

• Annual spring inspection: Check all fixings, probe post bases for rot, and look for any structural movement that needs addressing.
• Recoating: Apply a fresh coat of exterior preservative, paint, or stain every two to three years, or as soon as wear becomes visible.
• Plant management: Prune climbers according to their specific requirements to keep growth balanced, encourage flowering, and prevent the weight of plant material from stressing the structure.
• Winter preparation: In very exposed sites, consider temporarily tying in any long whippy growth from climbing roses to prevent wind rock, which can loosen root systems and damage stems.

With consistent attention to both the structure and the plants it supports, a well-built timber garden archway can remain a beautiful and functional garden feature for twenty years or more. The initial weekend of building effort pays dividends in decades of pleasure, from the first tentative tendrils of a young climber finding their way to the glorious mature arch smothered in blooms that greets you every time you step into your garden. Few garden projects deliver such a dramatic and lasting transformation for such a modest investment of time, money, and skill — and the pride of having built it yourself makes it all the more meaningful.
